Hot Wire Sculptor
The machine is very adaptable and comes with a range of stops, guides and accessories to assist with accurate model making.
Top Key Features
- Adjustable work guides for accurate material referencing
- Fine heating wire capable of cutting expanded polystyrene materials ups to 250mm thick
- Variable power to the wire is supplied from the low voltage transformer housed in the base of the machine
- Freehand shapes can be cut with ease
Overview

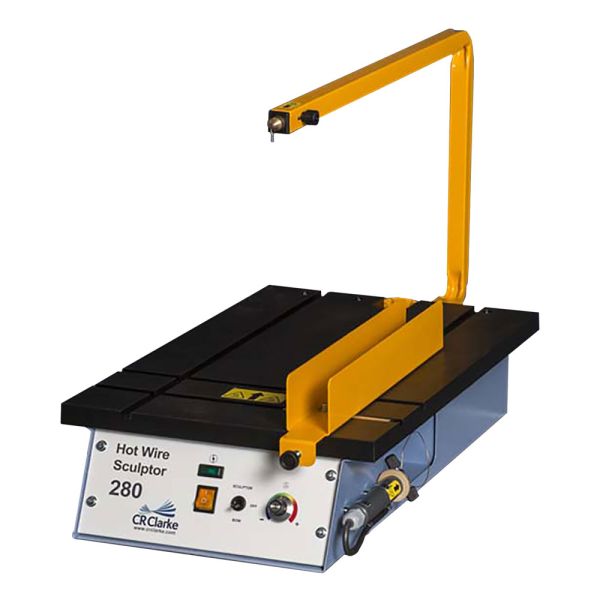

The 280 is a bench mounted Hot Wire Sculptor with a 280mm long heated wire. Â The machine is very adaptable and comes with a range of stops, guides and accessories to assist with accurate model making.
A panel mounted selection switch is used to direct power to either the wire bow or the hand held sculptor tool. Â The power regulator can then be used to control the cutting temperature. Â Power to the heating wires is controlled by a foot pedal, minimising any fumes created by the cutting process. Â The machine must always be used in a well ventilated area, but the foot pedal removes the need for dedicated extraction.
Key Features
- Adjustable work guides for accurate material referencing
- Fine heating wire capable of cutting expanded polystyrene materials ups to 250mm thick
- Variable power to the wire is supplied from the low voltage transformer housed in the base of the machine
- Freehand shapes can be cut with ease
- Machine table has grooves to accept the accessories supplied with each machine
- Wide variety of shapes can be created quickly and easily
- Freehand Sculptor Tool allows user to create freehand sculptures quickly and easily
- Sculptor tool wire can be bent to required shaped for gouging and channelling work
- 5 cutting speeds & 3 sculpting speeds
- Foot switch virtually eliminates fumes
Dimensions
| Dimensions: | 700 x 900 x 490 mm |
|---|---|
| Weight: | 22 kg |
Technical Specifications
| Electrical: | Voltage 230 or 115V 50-60Hz |
|---|---|
| Sheet Size: | Max Sheet Thickness / Cutting length: 280 mm |
| Throat Depth: | 635 mm (max) |
