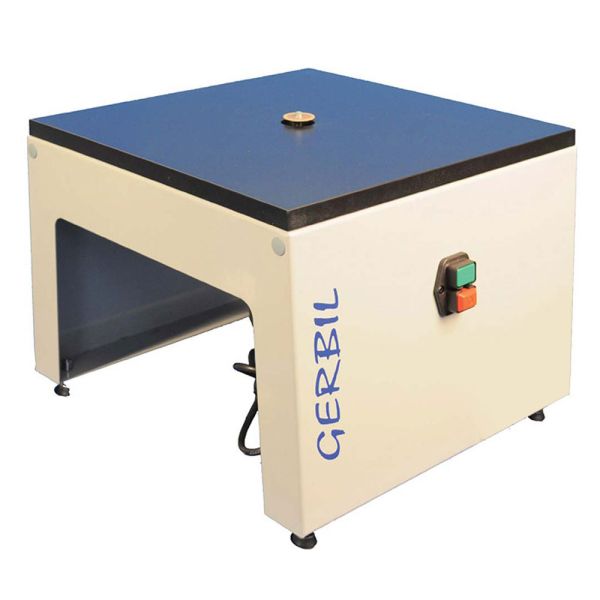

GERBIL - Vacuum Form, Trimming & Finishing Machine
The Gerbil is a unique patented machine designed for use by students in Design and Technology workshops in schools and colleges.
Top Key Features
-
Gerbil 2010
- 400 x 455mm MDF table top
- Multi tool arbor
- Tungsten carbide abrasive disc and holder
- Tool height adjustment facility
Gerbil 2020 (as for 2010) plus:
- Adjustable 0° to 10° metal tilting table
- Adjustable guide fence
Gerbil 2030 (as for 2020) plus:
- A customised Gerbil Trolley
- A Drum Sander with template, for creating draft angles on wooden vacuum form moulds
Overview
The Gerbil is a unique patented machine designed for use by students in Design and Technology workshops in schools and colleges.
The Gerbil complies with the European Machinery Directive and with the BS 4163:2007 “Health and Safety for Design and Technology in schools and similar establishments” regulations. All our education machines carry a 24 month warranty and are supplied with an operating manual.
Key Features
Gerbil 2010
- 400 x 455mm MDF table top
- Multi tool arbor
- Tungsten carbide abrasive disc and holder
- Tool height adjustment facility
- No-volt release switch
- Underside deflector plate to prevent motor access
- No access to sharp cutting edges
Gerbil 2020 (as for 2010) plus:
- Adjustable 0° to 10° metal tilting table
- Adjustable guide fence
- Large diameter hand wheel for tool height adjustment
- Dust extracting fence incorporating tool guard
- A Full Tool Kit
Gerbil 2030 (as for 2020) plus:
- A customised Gerbil Trolley
- A Drum Sander with template, for creating draft angles on wooden vacuum form moulds
Dimensions
| Weight: | 2010: 19 kg 2020: 21 kg 2030: 44 kg |
|---|
Technical Specifications
| Electrical: | Electrical Supply: 230V / 1 ph / 50 Hz - or - 110V / 1 ph / 50 Hz |
|---|---|
| Cutter Size: | (D x W) 17 x 17 mm (Flange) |
| Disc Size: | (D x W) 32 x 1 mm (TC Disk) |
| Motor: | Motor 0.07 kw Motor Speed 1380 rpm |
| Wheel Size: | 30 mm x 15 mm - & - 15 mm x 20 mm (Flap) |
