Flamefast - CDEX40
Categories: Workshop Equipment , Dust & Fume Extraction , Featured New , Education , Workshop Equipment , Dust & Fume Extraction

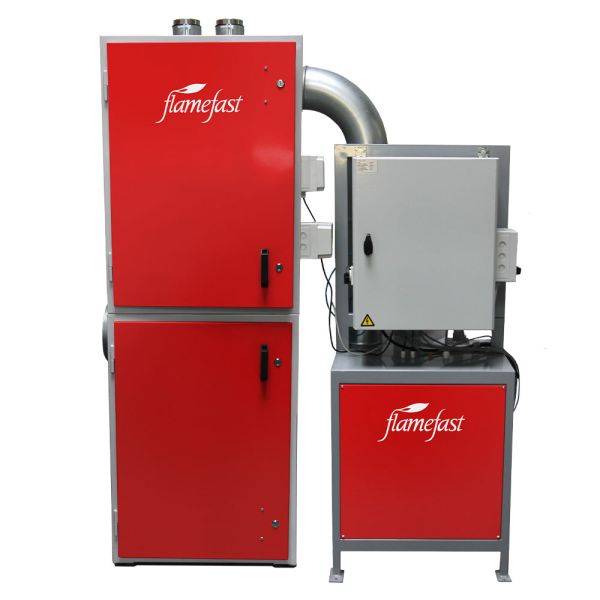

The Flamefast Centralised Extraction System (CDEX40) has been specifically developed for use in workshops with multiple woodworking machines.
Top Key Features
- Automatic filter cleaning
- Level guard
- Collector bag with pull out trolley
- Pressure controlled
- Point extraction from stationary machines
- Central vacuuming of light to medium dust
- Extraction from nozzles
- Wood workshops (eg two shops
Overview
The Flamefast CDEX40 System has been specifically developed for use in workshops with multiple woodworking machines.
The Flamefast CDEX40 system provides cleaner and safer environments and is capable of extracting dust from multiple machines simultaneously including plug in points for portable tools and attachments for floor and bench cleaning.
The Flamefast CDEX40 incorporates the use of automatic valves interfaced to the actual wood working machines so that the extraction is only on when required. Dust is collected centrally
Key Features
- Point extraction from stationary machines
- Central vacuuming of light to medium dust
- Extraction from nozzles
- Wood workshops (eg two shops from one machine)
- Build/carpenter school
- The pharmaceutical industry
- The paper industry
- The food industry
- Ortopedi workshops
Â
- Standard Equipment
Automatic filter cleaning - Level guard
- Collector bag with pull

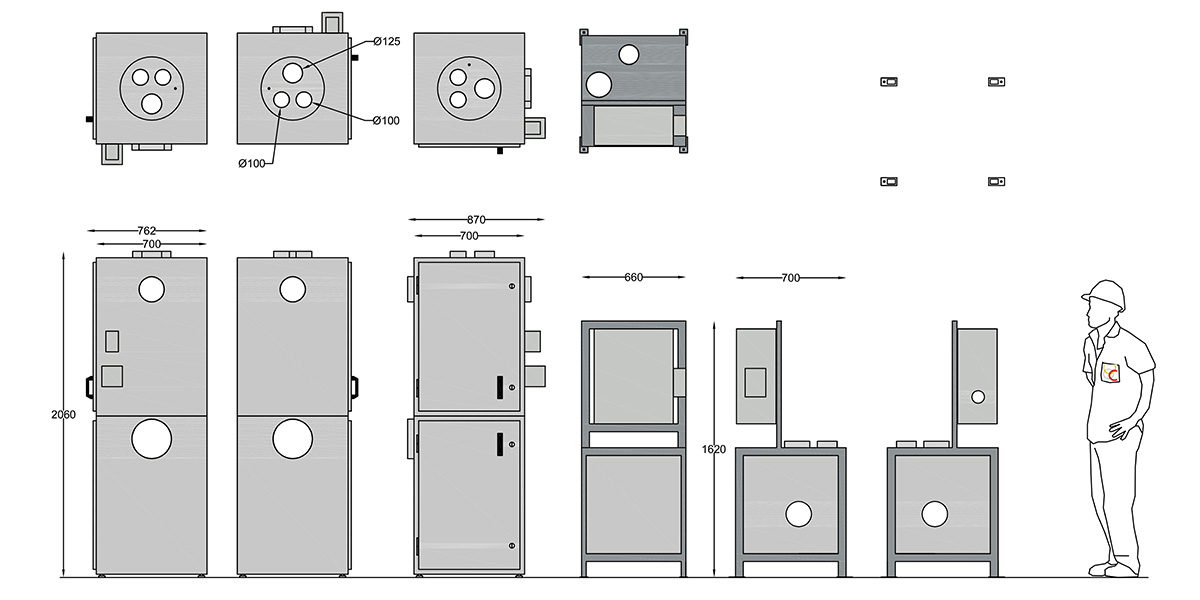

Dimensions
| Weight: | 292 kg (167kg for filter + 125kg for fan) |
|---|---|
| Seperator: | 870 x 2060 x 762 mm (W x H x D) |
| Fan Unit: | 660 x 1620 x 700 mm (W x H x D) |
Technical Specifications
| Connection Point: | 2 x ∅100mm, 1 x ∅125mm |
|---|---|
| Diameter: | 100 mm |
| Electrical: | 3 Phase, 400V, 4000W, 8.4A, 100Hz |
| Motor: | Type: AC Protection Class: IP55 |
| Noise Level: | 77 dB(A) by full power (100Hz) - Filter |
| Pressure / Airflow: | 9550 Pa - Max |
| Rotation: | 5500 rpm - rotation speed |
| Speed Number: | 2 |
| Volume Flow: | 1940 m3/h - Max flow volume |
