BEAR Tool Grinder 1, 2, 15 & 25
Categories: Education , Workshop Equipment , Grinders, Polishers & Linishers , Grinders , Workshop Equipment , Metalworking , Metalworking , Grinders, Polishers & Linishers

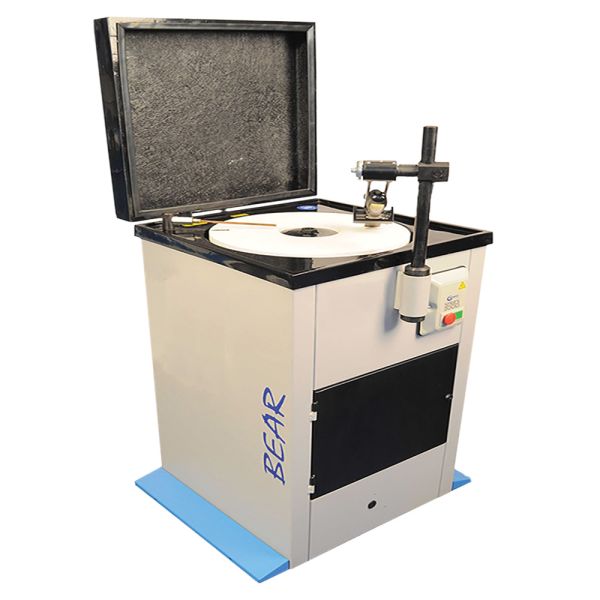

The Flamefast Bear Toolgrinder is a unique machine designed specifically to assist the technician servicing the school or college workshop.
Top Key Features
- Produces an accurate angle on the tool, which can be pre-set and repeated for a full batch of tools
- Controlled 140 rpm wheel speed
- Force-fed re-circulatory coolant system with anti spill tray
- Integral oil reservoir with filter (5 litres of oil is supplied)
- Tool holder for chisels and plane blades up to 60 mm wide
Overview
The Flamefast Bear Toolgrinder is a unique machine designed specifically to assist the technician servicing the school or college workshop. The Bear saves time for the technician and eliminates manual grinding variability.
It complies with the European Machinery Directive and with the BS 4163:2007 “Health and Safety for Design and Technology in schools and similar establishments” regulations. All our education machines carry a 24-month warranty and are supplied with an operating manual.
Key Features
- Produces an accurate angle on the tool, which can be pre-set and repeated for a full batch of tools
- Controlled 140 rpm wheel speed
- Force-fed re-circulatory coolant system with anti spill tray
- Integral oil reservoir with filter (5 litres of oil is supplied)
- Tool holder for chisels and plane blades up to 60 mm wide
- Radius gouge tool holder (Bear 2 only)
- 1500rpm cone wheel with work rest and splash guard (Bear 2 only)
- Centre swivel arm with Vernier adjustment to ensure square and even contact between the tool and the wheel
- Base cabinet with lockable access door
- Supplied with 406 mm diameter x 32 mm wide grinding wheel
Dimensions
| Weight: | Bear 1: 105 kg / Bear 2: 115 kg |
|---|
Technical Specifications
| Electrical: | 400 V / 3ph / 50 Hz - or - 230 V / 1 ph / 50 Hz |
|---|---|
| Wheel Size: | 406 x 32 mm (grinding wheel) / 75 x 100 mm (cone wheel) |
| Wheel Type: | Aluminium Oxide A80 |
