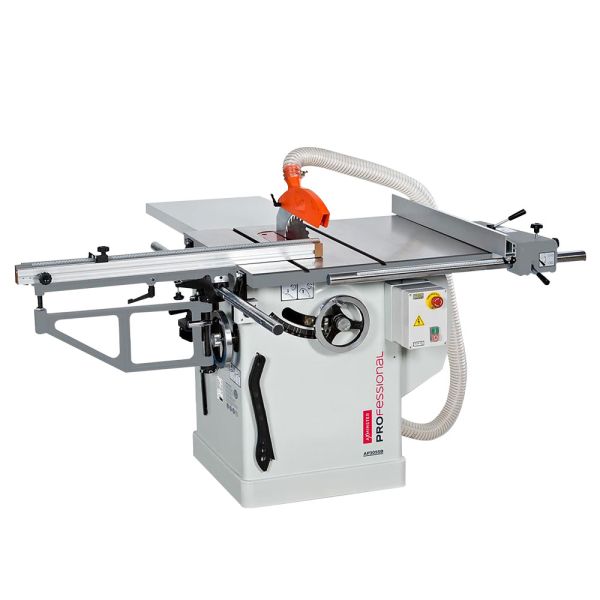

Professional Table Saw - AP305SB

This professional quality saw has a finely ground, heavy cast iron table on an all welded steel base.

Top Key Features

  • Cast iron main table and folding cast iron sliding crosscut table
  • Rigid rip fence with cam action clamps and hi/lo fence rail
  • Emergency footswitch for extra safety precaution

Overview

A saw bench is the foundation of a woodworking workshop and generally regarded as the most important machine.

This professional quality saw has a finely ground, heavy cast iron table on an all welded steel base. A rigid rip fence with cam action locking clamps and an extruded hi/lo alloy fence rail gives a max capacity of 620mm to the blade. The fence glides smoothly making adjustment practically effortless.

For cross cutting boards or panels, the cast iron sliding table runs on an adjustable bearing system. A mitre fence and a sliding support arm come as standard. This sliding table folds down out of the way when not required, saving space.

Power comes from a mechanically braked 2.2kW induction motor. Adjustments for rise and fall and blade tilt are via large, steel hand wheels with a locking facility.

It’s the small details that make the difference. The table infill plate has levelling screws. The blade arbor features a captive locking pin to make blade changing easier. The riving knife has a cam lever, simplifying fitting and adjustment. Dust extraction is via a rear mounted 100mm port with a connection hose to the crown guard.

The conveniently mounted switch box has a locking emergency stop button and an emergency footswitch adds an extra safety precaution.

Key Features

  • Cast iron main table and folding cast iron sliding crosscut table
  • Rigid rip fence with cam action clamps and hi/lo fence rail
  • Emergency footswitch for extra safety precaution

Dimensions

Length:1920 mm
Width:1760 mm
Height:1200 mm
Weight:270 kg
Table Size:H: 900 mm, 800 mm x 630 mm

Technical Specifications

Blade:

Blade Diameter: 305 mm

Blade RPM: 4,000 rpm

Blade Tilt: 0° to 45°

Bore Size:30 mm
Cut Depth:

Max Depth of Cut @ 45º: 72 mm

Max Depth of Cut @ 90º: 102 mm

Cut Width:Max Width of Cut with Fence: 620 mm
Dust Extraction Outlet:100 mm & 60 mm
Electrical:230 V
Plug Fitted:UK 16A Plug
Rating:Trade/Professional
