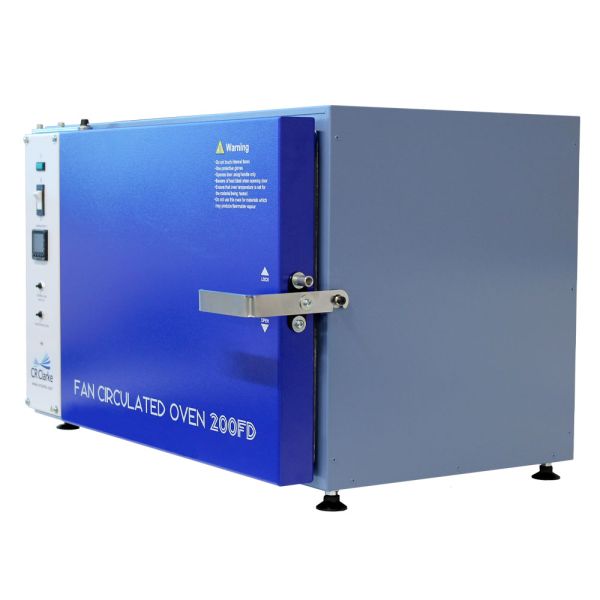

200FD Fan Circulated Oven

The 200FD Fan Circulated Oven is ideal for heating materials prior to dip coating, dome blowing, press forming and thermoforming.

Overview

The 200FD Fan Circulated Oven is ideal for heating materials prior to dip coating, dome blowing, press forming and thermoforming.  It is also suitable for pre-drying of materials prior to vacuum forming.  All  ovens are capable of heating materials up to 350 Degrees C and are fitted with digital temperature controllers and high-quality insulation for optimum energy efficiency.

Ideal for:

  • Pre-drying materials
  • Heating prior to Dome Blowing
  • Press forming and other processes
  • 350°C Max temperature
  • Suitable for pre-heating of metal items prior to dip coating
  • High quality heating elements and digital temperature control
  • 50mm of high temperature insulation

Dimensions

Dimensions:930 x 630 x 670 (packed) / 508 x 355 x 304 (Internal)
Weight:50 kg

Technical Specifications

Electrical:

Voltage    230V 50-60Hz

Max Current    10 Amps

Temperature:350°C (max)
