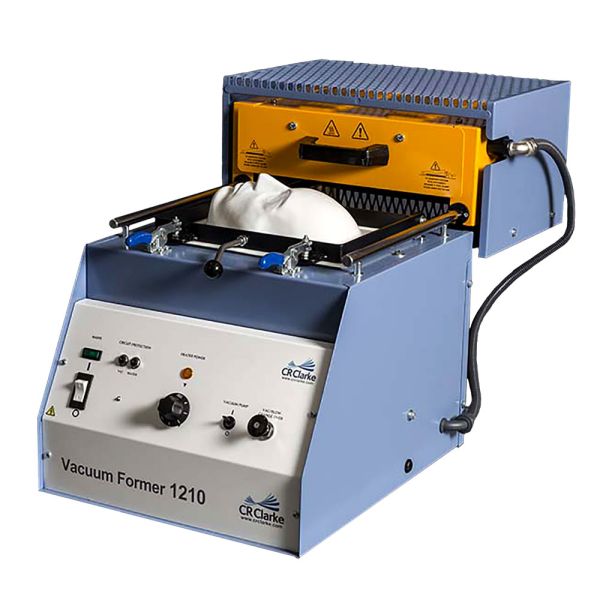

Vacuum Former - 1210
The 1210 will produce professional, quality and high-definition vacuum formings on a small scale.
Overview
The 1210 will produce professional, quality and high-definition vacuum formings on a small scale as required by model makers, development engineers and students quickly, efficiently and consistently. Â The machine includes a single zone ceramic heater system, high flow vacuum pump, silicone upper seal and easily replaceable platen seal. Â A mechanical interlock prevents taller moulds from damaging the heater system.
Dimensions
| Dimensions: | 630 x 930 x 670 mm |
|---|---|
| Weight: | 41 kg |
Technical Specifications
| Electrical: | Voltage: 230 50-60Hz Max Current: 6Amps |
|---|---|
| Material Thickeness: | 6 mm (max) |
| Mould Height: | 115 mm (max) |
| Sheet Size: | 305 x 228 mm |
