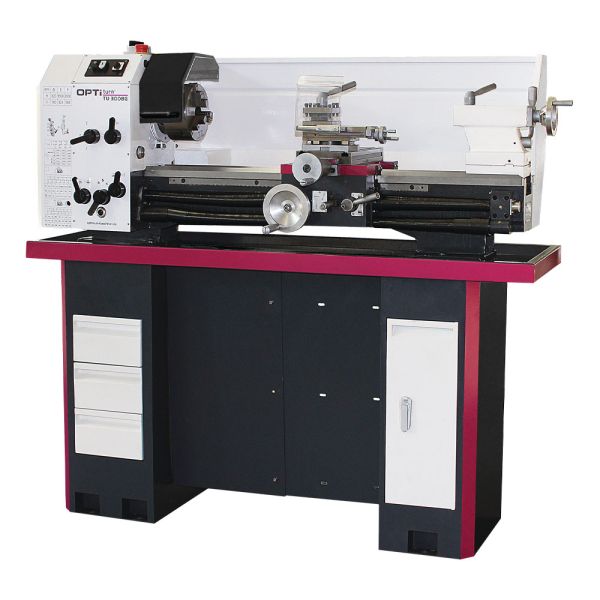

Guide and traction spindle lathes with longitudinal and face feed. TU 3008G with gearbox. TU 3008V with brushless motor for stepless speed control.
Top Key Features
- Precise processing
- Heavily ribbed prism bed made of gray cast iron, inductively hardened and precision ground
- Hardened and ground Z-axis guideway
- Smooth-running feed gear with rounded gears running in an oil bath
- Guaranteed concentricity of the spindle nose better than 0.009 mm
Overview
Guide and traction spindle lathes with longitudinal and face feed. TU 3008G with gearbox. TU 3008V with brushless motor for stepless speed control.
The TU 3008V also has a V-belt and quiet, powerful brushless DC drive with excellent control characteristics. A high precision steel lining for higher speeds and digital speed display
Key Features
- Precise processing
- Heavily ribbed prism bed made of gray cast iron, inductively hardened and precision ground
- Hardened and ground Z-axis guideway
- Smooth-running feed gear with rounded gears running in an oil bath
- Guaranteed concentricity of the spindle nose better than 0.009 mm
- Lathe chuck concentricity better than 0.04 mm
- Quadruple tool holder
- All guides can be adjusted by wedge strips
- Right / left rotation in the control panel switchable
- Hardened main spindle mounted in adjustable, precision tapered roller bearings
- Tapered roller bearings in P5 quality
- Hardened spindle nose
- Large spindle bore Ø 38 mm
- Lead screw for thread cutting or automatic longitudinal turning
- Guide & feed shaft stored in two sintered bearings
- Automatic longitudinal / flat feeds
- Lead screw and tension spindle cover
- Tailstock for taper turning ± 5 mm adjustable
- Tailstock quill and handwheel with adjustable fine scale 0.02 mm
- Fast, easy and tool-free adjustment by means of a clamping lever
- Handwheels on the carriage with adjustable fine scale 0.04 / 0.01 mm
- Change wheel set in the standard scope of supply for thread cutting
- Emergency stop impact switch6
- TU3008: fan belt, TU3008G: Transmission
Dimensions
| Length: | 1530 mm |
|---|---|
| Width: | 710 mm |
| Height: | 580 mm |
| Weight: | 261 kg |
Technical Specifications
| Electrical: | Drive motor output: 1.1 kW Mains frequency: 50 Hz Supply voltage: 400 V |
|---|---|
| Feeds: | Longitudinal feed range: 0.085 - 0.832 mm / rev Flat feed range: 0.01 - 0.1mm/rev No of longitudinal feeds: 9 No of flat feeds: 9
|
| No. Speeds / Number of gears: | 6 |
| Pitch: | Metric pitch: 0.2 - 3.5 mm/rev Imperial pitch: 56 8 Threads/1” No. metric pitches: 18 No. imperial pitches: 21 |
| Speed: | 180 - 2600min-1 (range) |
| Spindle: | MT5 |
| Spindle Bore / Hole: | 38 mm (rod passage diameter) |
| Spindle Taper / Chuck / Seat: | Spindle chuck: Camlock Din ISO 702-2 No 4 |
| Tailstock Stroke: | 70 mm (quill) |
| Tailstock Taper / Chuck: | MT3 |
| Tool: | 18 mm(max chuck height) |
| Z-Axis: | TU3008V: 150 mm |
