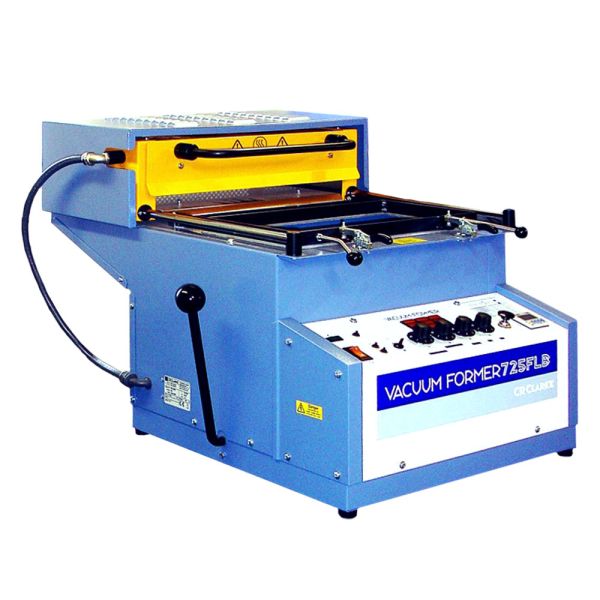

Large Vacuum Former - 725FL

Developed for high performance, ease of use and low maintenance. The 725FLB will produce professional, quality and high definition vacuum formings on a small/medium scale as required by model makers, development engineers and students quickly, efficiently and consistently.

Top Key Features

  • High performance & ease of use
  • Fitted with a -0.83 bar vacuum pump
  • Safety interlock fitted to prevent damage to heaters when using a tall mould.
  • Vacuum pump, provides a blow release to assist in removal of the forming.
  • Multi-zone ceramic heater system
  • Digital timer & audible alarm

Overview

Developed for high performance, ease of use and low maintenance. The 725FLB will produce professional, quality and high definition vacuum formings on a small/medium scale as required by model makers, development engineers and students quickly, efficiently and consistently.  The machine embodies design features, manufacturing techniques and proprietary component specifications unique to our equipment

Ceramic heater systems are used for fast and even heating. Heater hoods and platens run on chrome plated slide bars with nylon bushes for smooth operation. The one-piece moulded silicone top seal is heat resistant for long service, while the platen seal simply lifts out for ease of maintenance.

Key Features

  • High performance & ease of use
  • Fitted with a -0.83 bar vacuum pump
  • Safety interlock fitted to prevent damage to heaters when using a tall mould.
  • Vacuum pump, provides a blow release to assist in removal of the forming.
  • Multi-zone ceramic heater system
  • Digital timer & audible alarm

Dimensions

Dimensions:760 x 990 x 740 mm
Weight:84 kg

Technical Specifications

Electrical:230 50-60Hz, 8 Amp
Material Thickeness:6 mm
Mould Height:152 mm
Sheet Size:458 x 254 mm
